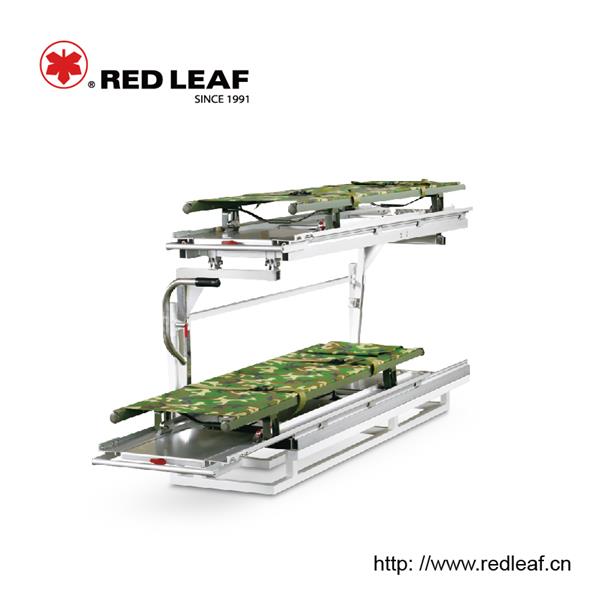

PF-05 Adjustable Electric Hydraulic Manual Double-layer Stretcher Base

Features
1. This adjustable stretcher base is ideal for use when large number of casualties occur, such as casualties caused by natural disaster, war, etc.
2. Each ambulance, when loaded with two double-layer stretcher bases, can transport 4 patients or wounded person simultaneously.

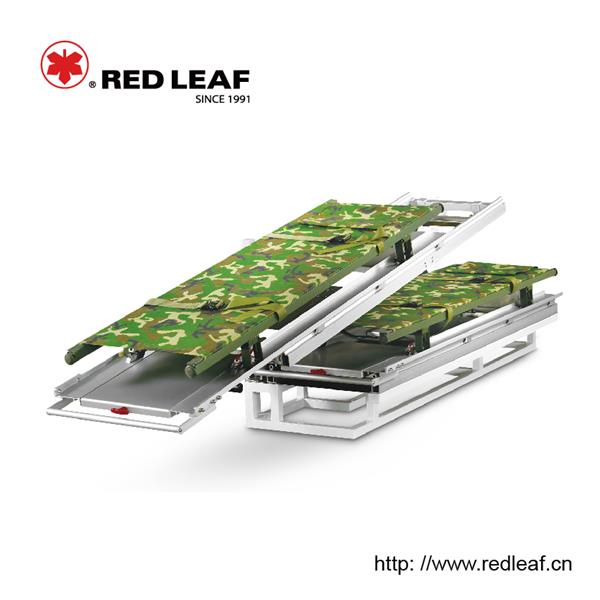

3. The upper and lower layers can be extracted for 64cm to facilitate rescue.
4. The upper layer can incline 8º.
5. Lifting and lowering of this adjustable stretcher base are controlled hydraulically, or can be adjusted manually.
6. This double-layer stretcher base uses 12V DC power of ambulance.
7. The adjustable stretcher base is made of aluminum and stainless steel, durable and reliable.
(Patent applied)

Specifications

Model	Product Size (L × W × H) (cm)	Inside Size (L × W × H) (cm)	Downward Inclination	Net Weight (kg)	Load Bearing (kg)	Packing
						Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
PF-05	208 × 86 × 153	200 × 58 × 23	22 º (upper) 13º (lower)	185	150 × 2	1	218 × 96 × 163	235
