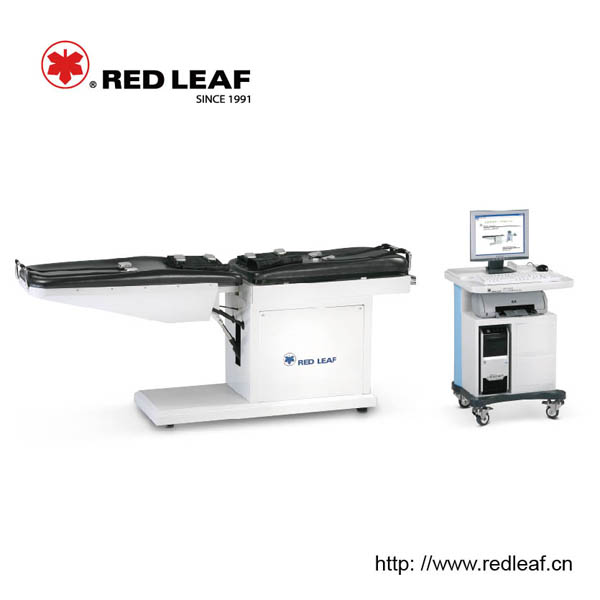

RXPC-2000 Multifunctional Lumbar Vertebra Traction Bed

Description
This lumbar vertebra traction bed is equipped with hydraulic pressure system and digital control system controlled by computer. The hospital traction bed can realize quick, slow, rotary and angular traction to help restore lumbar curvature. It is also designed with patient case management software to get comprehensive understanding of the patient’s treatment history.

The lumbar vertebra traction bed is used for cervical and lumbar traction in clinical treatment, including treatment of lumbar intervertebral disc herniation, thoracolumbar joint dislocation, vertebral compression fracture, etc.

Contraindications: spinal tuberculosis, serious heart disease, serious diabetes, osteoporosis, people with skin damage, pregnant women, etc.

Advice: before using this hospital traction bed, the patient should do X-ray or CT first for diagnosis.
(Please use under the guidance of doctor)

Technical Parameter
Quick traction function:
Quick traction: ≥3000N
Distance: 0-70mm
Time: ≥1s
Angular degree: -30°~ +10° (adjustable)
Rotary angle: -25°~ +25° (adjustable)

Slow traction function:
Slow traction: 100-1200N (adjustable)
Distance: 0-150mm
Total time: 0-60min (adjustable)
Time under continuous mode: 0-9min (adjustable)
Time under intermittent mode: 0-5min (adjustable)
Angular degree: -30°~+10° (adjustable)
Rotary angle: -25°~+25° (adjustable)
Power supply: 220v/50Hz
Power: ≤ 900W
Size: main machine: 220 × 50 × 83cm
     auxiliary machine: 56 × 105 × 110cm
Weight: about 275kg
