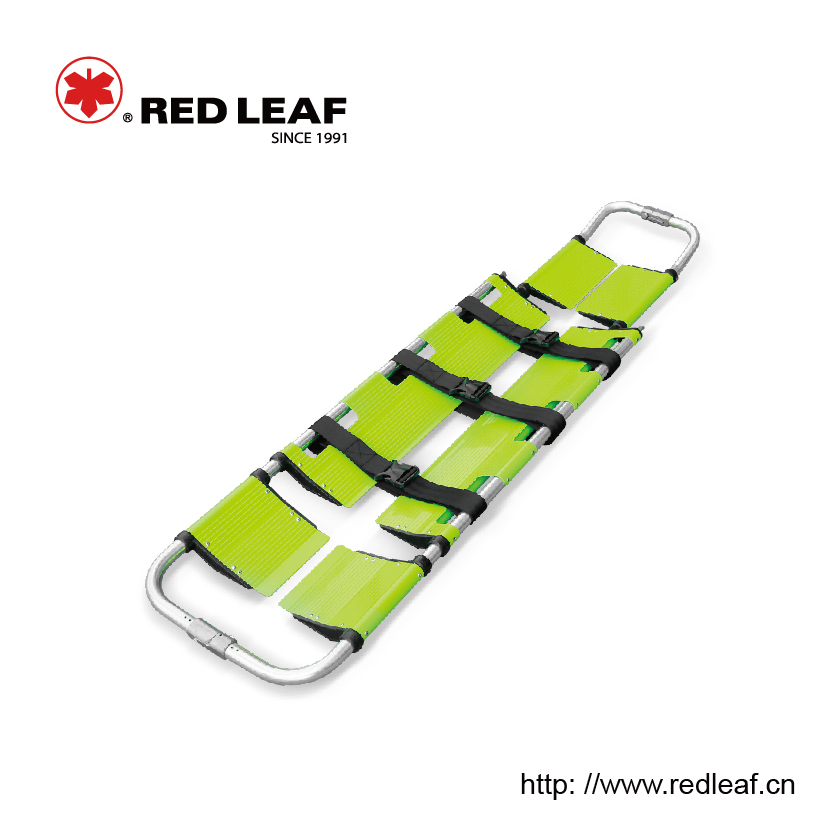

YDC-4B02 Separable adjustable scoop stretcher

Technical features:
Adopts separable rigid structure. Used to transport fractures and severe wounded patient.

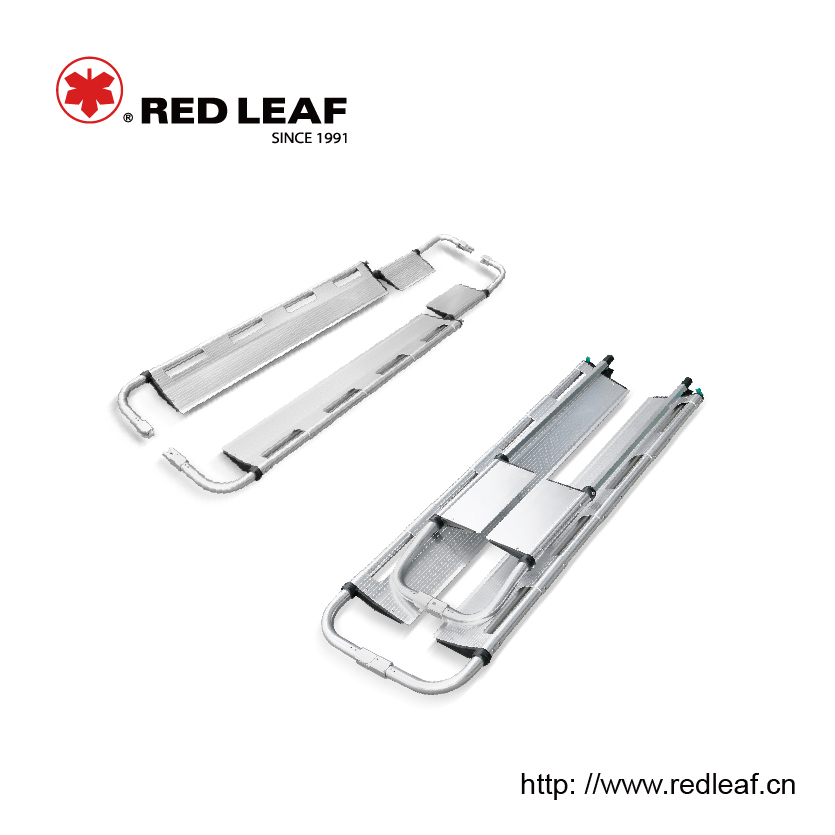

There are clutch device on both ends which can separate the stretcher into left and right two parts.
The stretcher can immobilize the wounded patient without moving them, preventing further damage to the wounded person.
Quickly shovel the patient into the stretcher or take out the stretcher from the wounded back without moving them.
Stretcher length can be adjusted in three positions according to the height of the patient.
The foot-end of the stretcher adopts narrow frame structure.

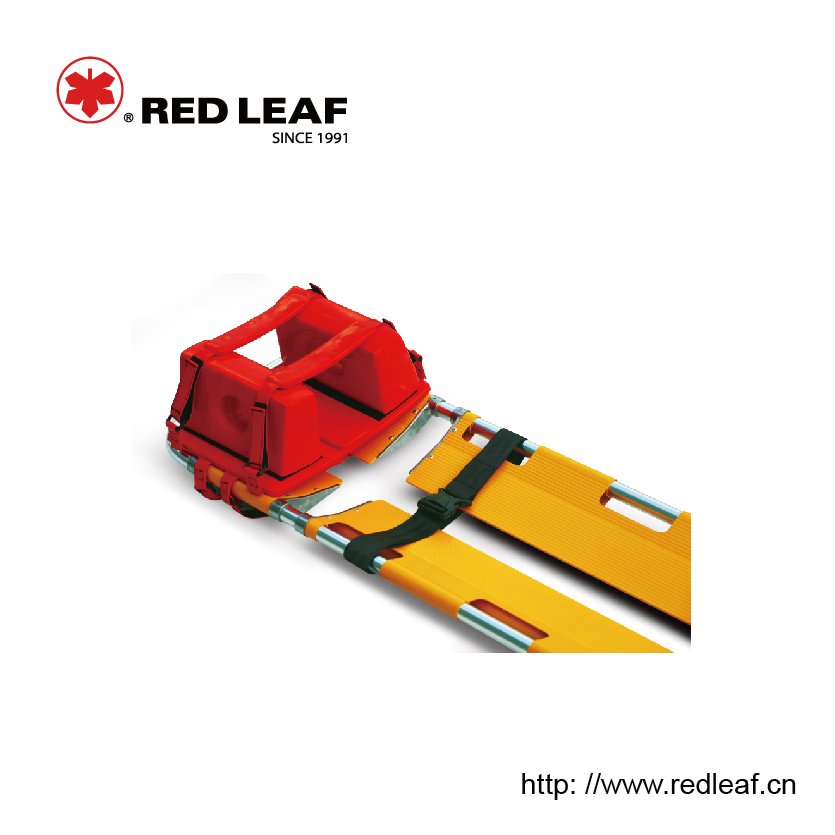

YDC-4B02 can be used together with head immobilizer.
Specifications

Model	Unfolded Size (LxWxH)	Retracted Size (LxWxH)	Self-Weigt	Load Bearing	Packing
					Quantity	Size (LxWxH)	G.W.
YDC-4B02	200x42x7cm	165x42x7cm	8.3kg	159kg	1	172x7x45cm	11kg
