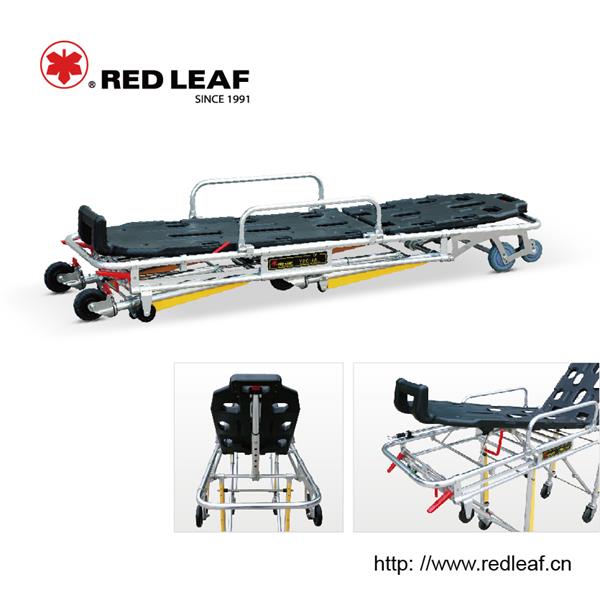

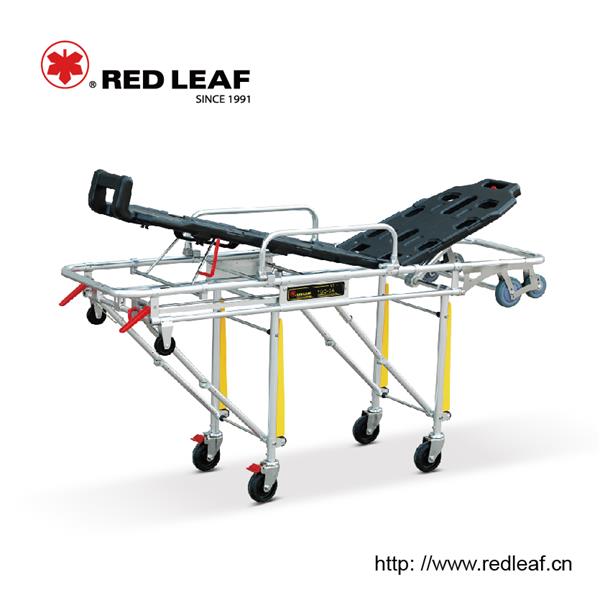

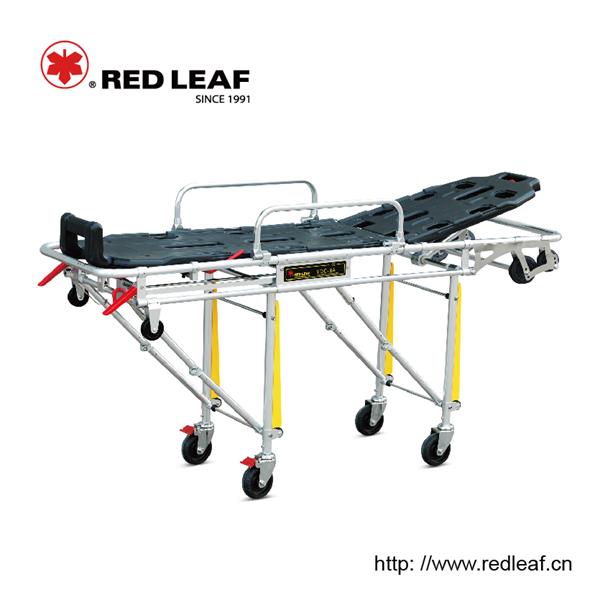

YDC-3A03 Adjustable Aluminum Alloy HDPE Board Ambulance Stretcher

Features
1. This aluminum alloy ambulance stretcher uses high-strength aluminum alloy as the main material, and it’s treated with surface hardening.
2. Mattress (35mm) of our HDPE spine board ambulance stretcher is seamlessly welded with high-density polyethylene coated nylon, and the mattress is waterproof.
3. This aluminum alloy ambulance stretcher is designed with adjustable two-stage I.V. stand, which enjoys maximum adjustable length of 75cm.
4. The HDPE spine board ambulance stretcher is equipped with aluminum alloy adjustable guardrails and two safety belts for the convenience and safety of patient transport.
5. There are two wheels at the loading part with different sizes, and the loading height can be adjusted among 67cm, 65cm and 64cm.
6. The folding mechanism of this aluminum alloy ambulance stretcher can be controlled by the handles on both sides. Only one medical staff is needed to push the stretcher into the ambulance.
7. Stretcher surface adopts hollow plate structure and molded high-strength HDPE board, durable and easy to clean.
8. Wheel size: Ø125mm.

Specifications

Model	Product Size (L × W × H) (cm)		Max Angle of Back	Max Angle of Knee Part	Net Weight (kg)	Load Bearing (kg)	Packing
	High Position	Low Position					Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
YDC-3A03	195 × 58 × 90	195 × 58 × 26	50º	15º	37	181	1	206 × 62 × 39	49
