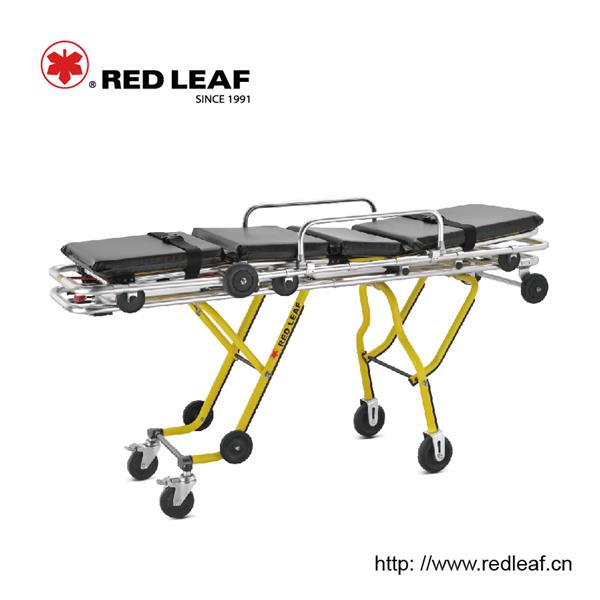

YDC-3H03 Adjustable & Separable Aluminum Alloy Ambulance Stretcher

Features
1. This separable ambulance stretcher uses high-strength aluminum alloy as the main material, and it’s treated with surface hardening.
2. The height of front part, back part and the whole stretcher can be adjusted at 12 levels. Loading height: 62 - 64cm.
3. The height variable ambulance stretcher is equipped with aluminum alloy adjustable guardrails and two safety belts for the convenience and safety of patient transport.
4. Mattress (65mm) of our separable ambulance stretcher is seamlessly welded with high-density polyethylene coated nylon, and the mattress is waterproof.
5. This height variable ambulance stretcher is designed with adjustable two-stage I.V. stand, which enjoys maximum adjustable length of 75cm.

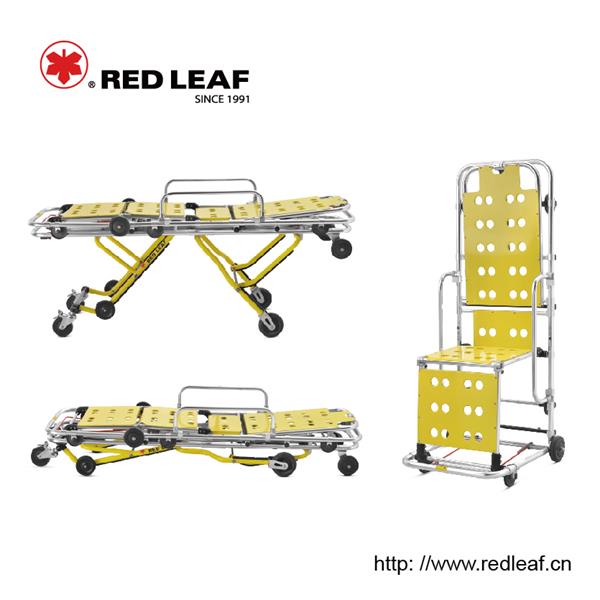

6. The upper frame of our separable ambulance stretcher can be used alone or folded into a chair. The patient can remain seated for transport.
7. Only one medical staff is needed to push the stretcher into the ambulance.

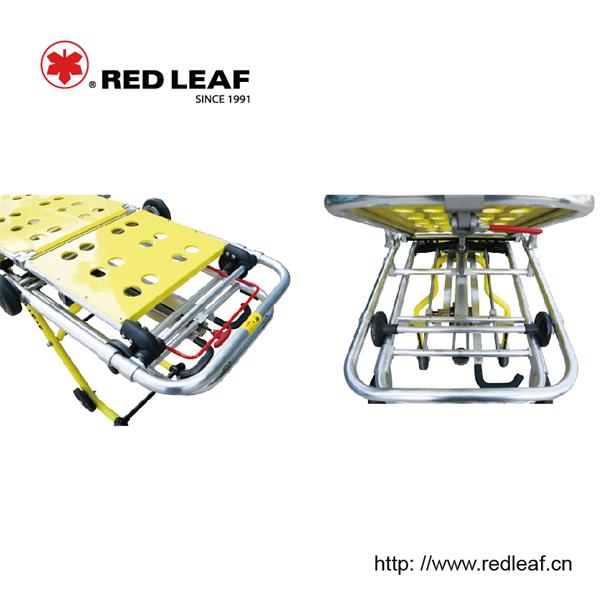

8. The folding mechanism of the height variable ambulance stretcher is controlled by handles, and it must be fixed with the fixing device after the stretcher is loaded onto the ambulance.
9. Wheel size: Ø150mm.

Specifications

Model	Product Size (L × W × H) (cm)		Max Angle of Back	Max Angle of Knee Part	Net Weight (kg)	Load Bearing (kg)	Packing
	High Position	Low Position					Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
YDC-3H03	193 × 56 × 88	193 × 56 × 36	65º	90º	44	181	1	201 × 64 × 43	49
