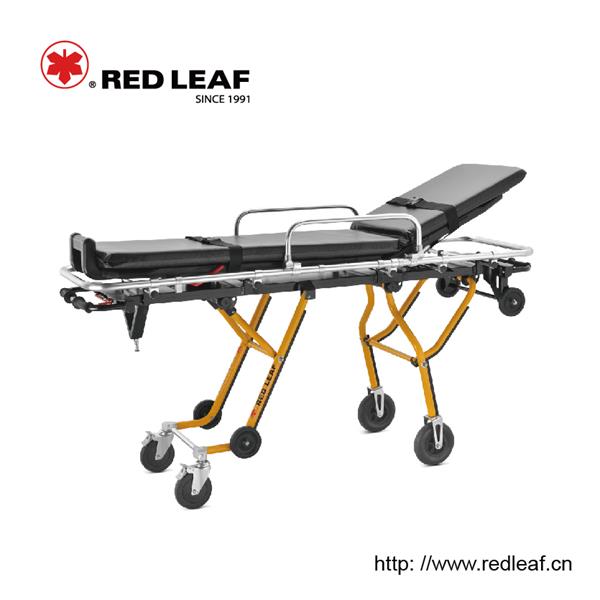

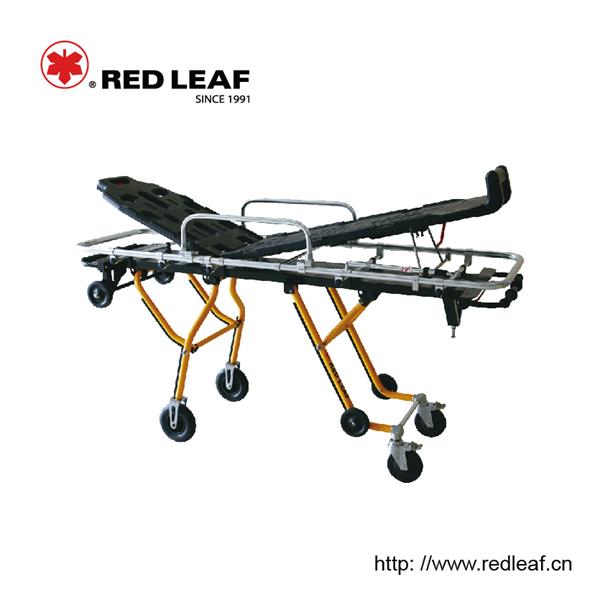

YDC-3G02 Adjustable Aluminum Alloy PE Board Ambulance Stretcher

Features
1. This aluminum alloy ambulance stretcher uses high-strength aluminum alloy as the main material, and it’s treated with surface hardening.

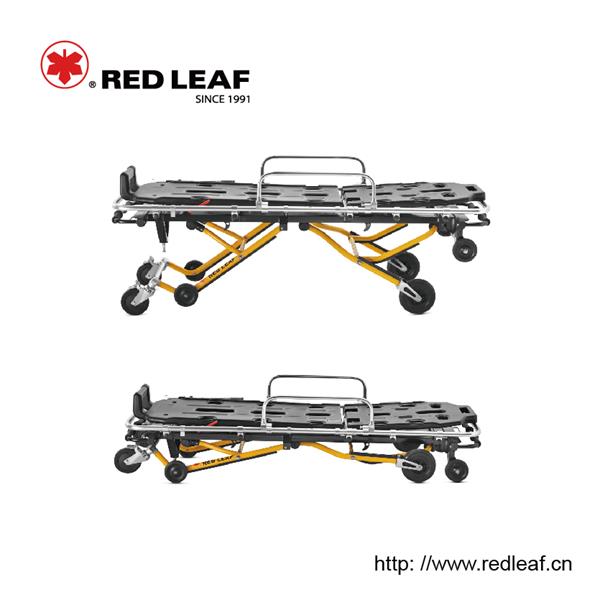

2. The height of front part, back part and the whole stretcher can be adjusted at 12 levels. Loading height: 62 - 64cm.
3. The PE board ambulance stretcher is equipped with aluminum alloy guardrails and two safety belts for the convenience and safety of patient transport.
4. Mattress (65mm) of our aluminum alloy ambulance stretcher is seamlessly welded with high-density polyethylene coated nylon, and the mattress is waterproof.
5. This PE board ambulance stretcher is designed with adjustable two-stage I.V. stand, which enjoys maximum adjustable length of 75cm.
6. Only one medical staff is needed to push the stretcher into the ambulance.
7. The folding mechanism is controlled by handles, and it must be fixed with the fixing device after the stretcher is loaded onto the ambulance.
8. The stretcher surface adopts molded high-strength PE board, which features safe and durable performance, simple to use and no pollution.
9. Wheel size: Φ150mm.

Specifications

Model	Product Size (L × W × H) (cm)		Max Angle of Back	Max Angle of Knee Part	Net Weight (kg)	Load Bearing (kg)	Packing
	High Position	Low Position					Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
YDC-3G02	193 × 58 × 88	193 × 58 × 36	65º	15º	36	181	1	201 × 64 × 50	45
