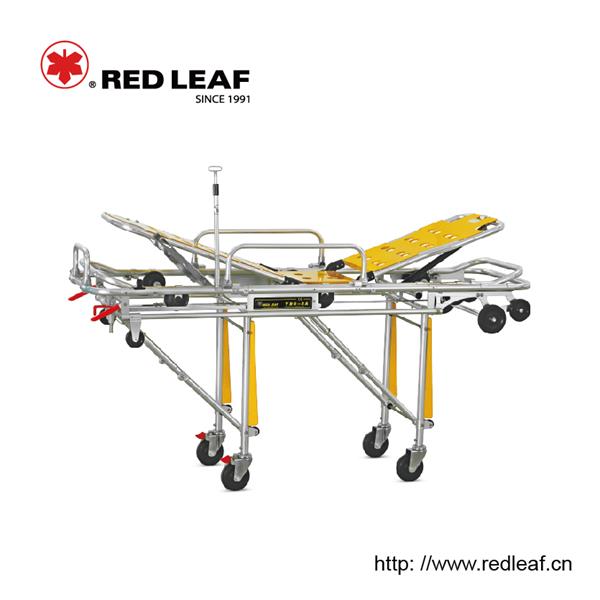

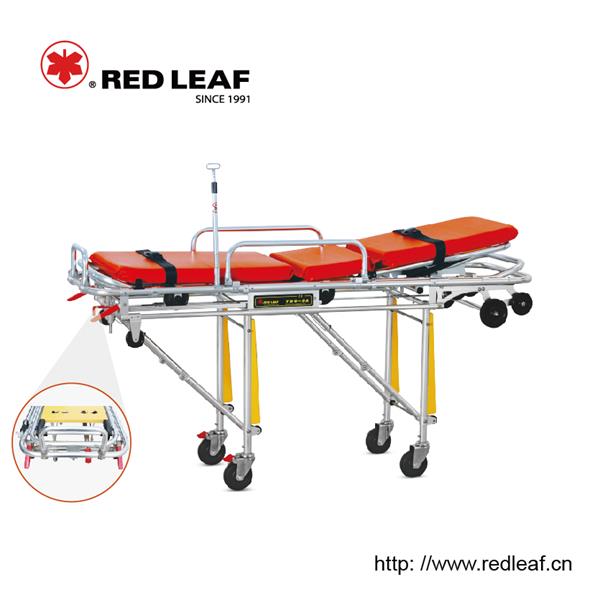

YDC-3A02 Separable Aluminum Alloy Ambulance Stretcher

Features
1. This separable ambulance stretcher uses high-strength aluminum alloy as the main material, and it’s treated with surface hardening.
2. Angles of backrest and knee part angles are adjustable.
3. Mattress (65mm) of our adjustable ambulance stretcher is seamlessly welded with high-density polyethylene coated nylon, and the mattress is waterproof.
4. This separable ambulance stretcher is designed with adjustable two-stage I.V. stand, which enjoys maximum adjustable length of 75cm.
6. The adjustable ambulance stretcher is equipped with aluminum alloy adjustable guardrails and two safety belts for the convenience and safety of patient transport.
7. There are two wheels at the loading part with different sizes, and the loading height can be adjusted among 67cm, 65cm and 64cm.

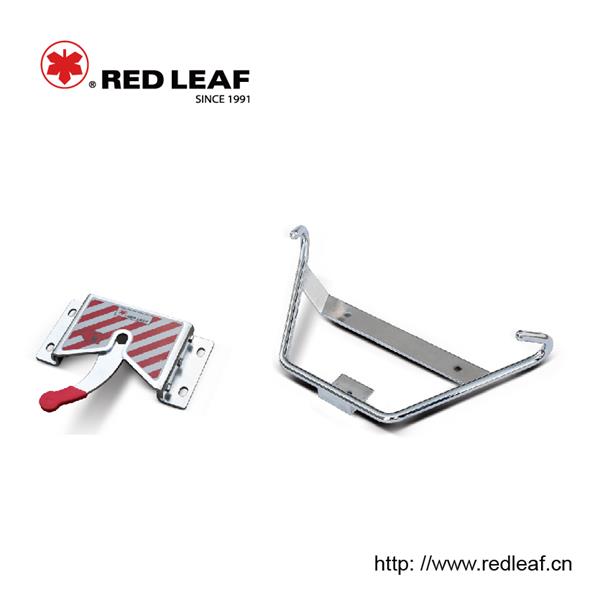

8. The folding mechanism of this separable ambulance stretcher can be controlled by the handles on both sides. Only one medical staff is needed to push the stretcher into the ambulance.

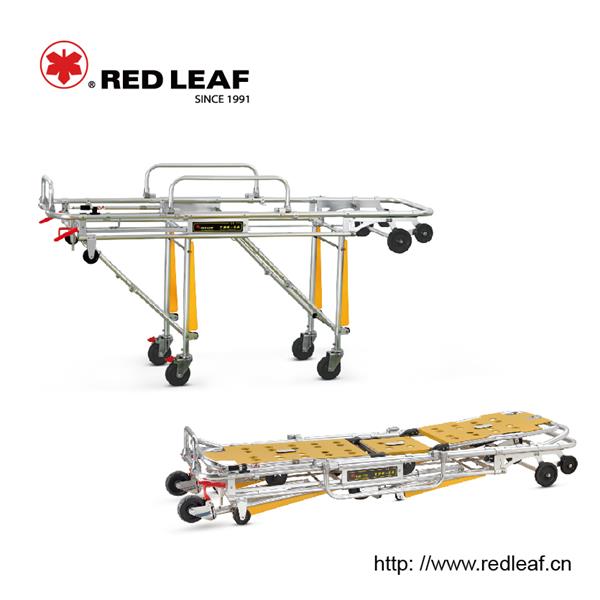

9. YDC-3A02 has a separable structure. The upper part can be separated and be used as a simple stretcher. It is suitable for use in places where the road is not smooth.
10. Wheel size: Ø125mm.

Specifications

Model	Product Size (L × W × H) (cm)		Max Angle of Back	Max Angle of Knee Part	Net Weight (kg)	Load Bearing (kg)	Packing
	High Position	Low Position					Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
YDC-3A02	195 × 58 × 90	195 × 58 × 26	75º	15º	42	181	1	206 × 63 × 31	52
