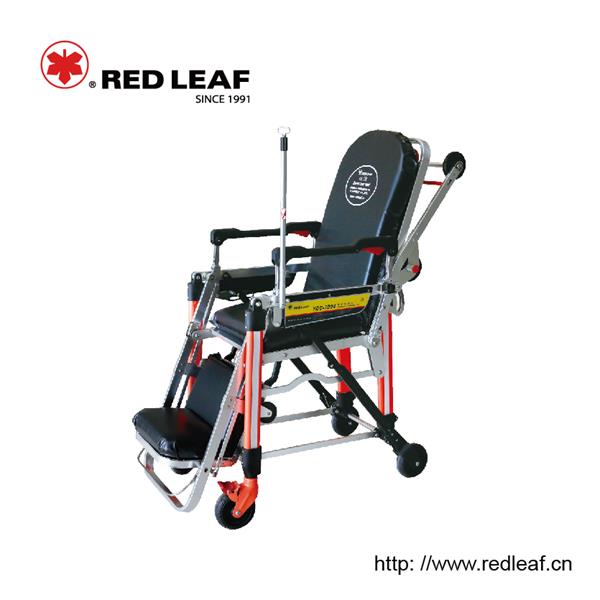

YDC-3D04 Automatic-locking Fluorescent Folding Chair Stretcher for Narrow Spaces like Elevators

Features
1. The automatic-locking chair stretcher can be quickly converted into a wheelchair, and has more than 4 types of height and angle positions to meet operating needs in narrow space.

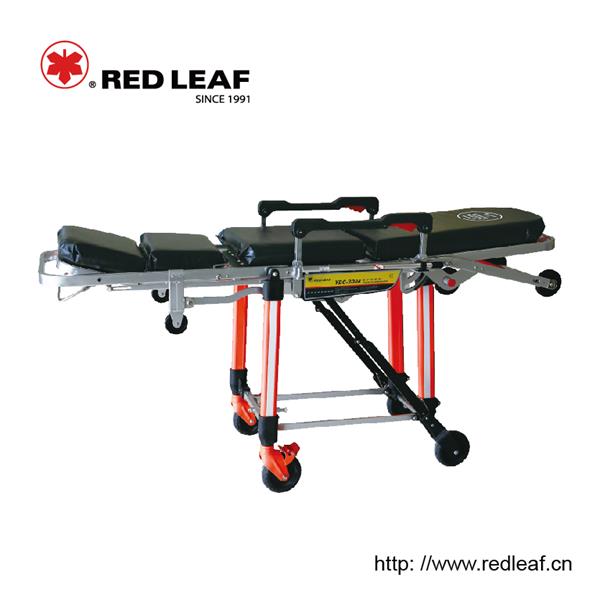

2. This folding chair stretcher can pass small lifts and narrow space. Length adjustment is realized by bayonet type synchronous folding mechanism.

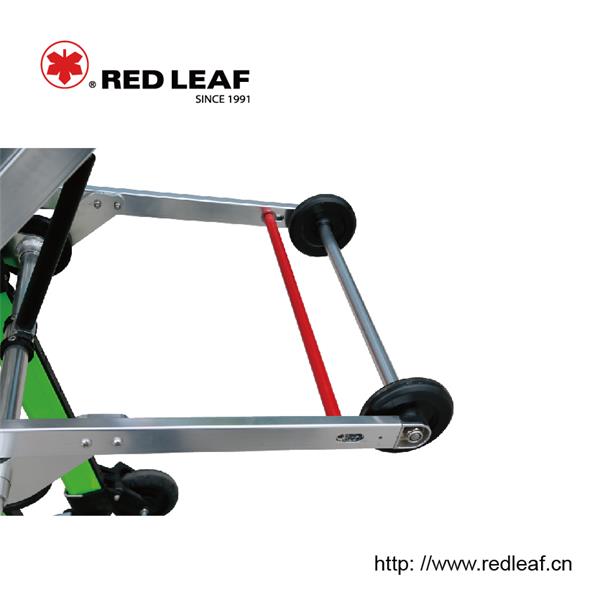

3. The legs of this automatic-locking chair stretcher can lock automatically when unloaded from the ambulance.

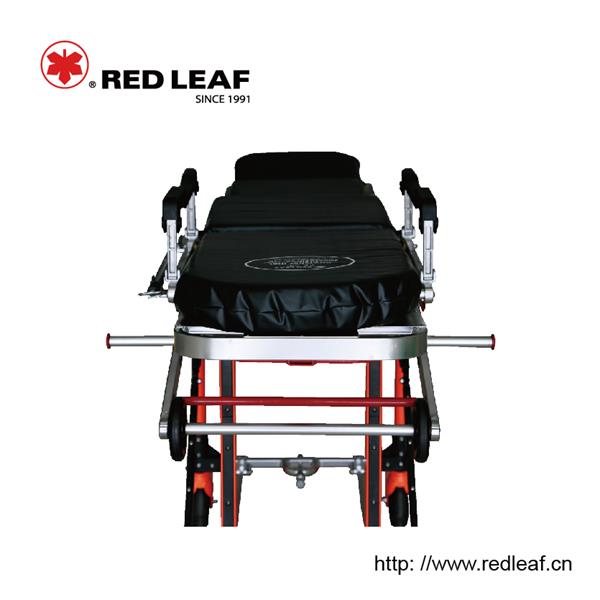

4. Our folding chair stretcher is equipped with adjustable polymer plastic guardrails and three-point style safety belts for the convenience and safety of patient transport.
5. The mattress (thickness: 80mm) is seamlessly welded with sealed high-density polyethylene-coated nylon, and it’s firmly connected with the stretcher surface by expansion hook.
6. The automatic-locking chair stretcher is equipped with adjustable two-stage I.V. stand, and it enjoys maximum adjustable length of 100cm.

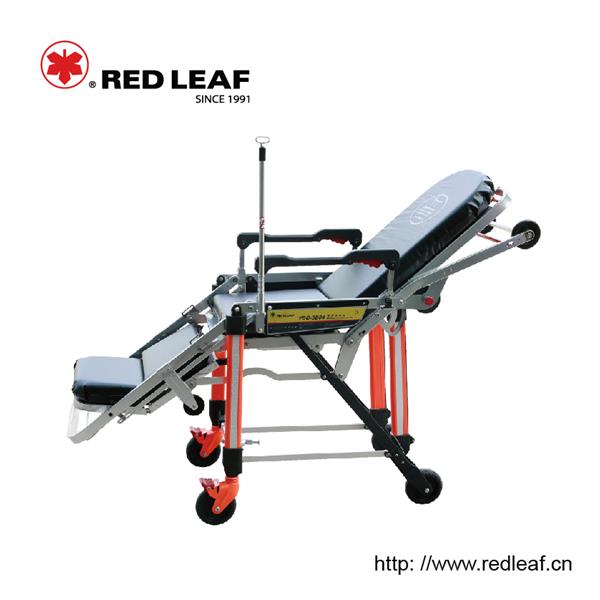

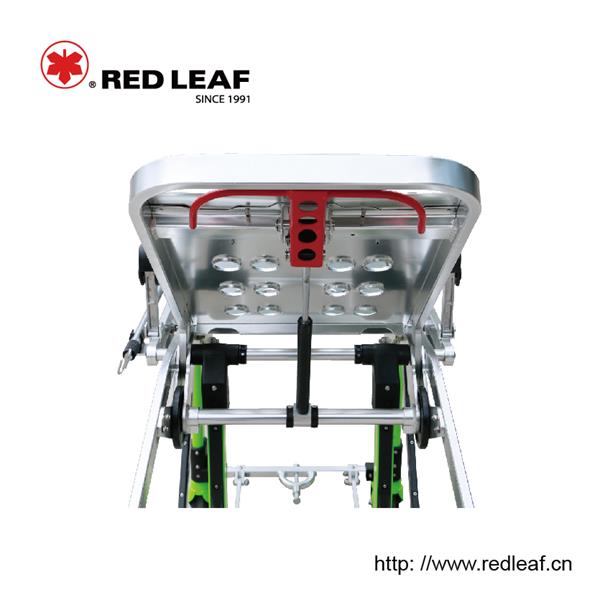

7. This folding chair stretcher is designed with gas-spring support backrest, facilitating the patient to quickly change to sitting, semi-Fowler’s or lying positions, and making it faster to perform CPR or tracheal intubation.
8. Striking fluorescent color.
9. Auxiliary accessories: oxygen bottle holder, placing racks for defibrillator and ventilator.
10. Loading height: 66cm; wheel size: Ø150mm.

Specifications

Model	Product Size (L × W × H) (cm)		Max Angle of Back	Max Angle of Knee Part	Net Weight (kg)	Load Bearing (kg)	Packing
	High Position	Low Position					Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
YDC-3D04	190 × 58 × 84	195 × 58 × 27	40º	60º	39	320	1	201 × 64 × 27	-
