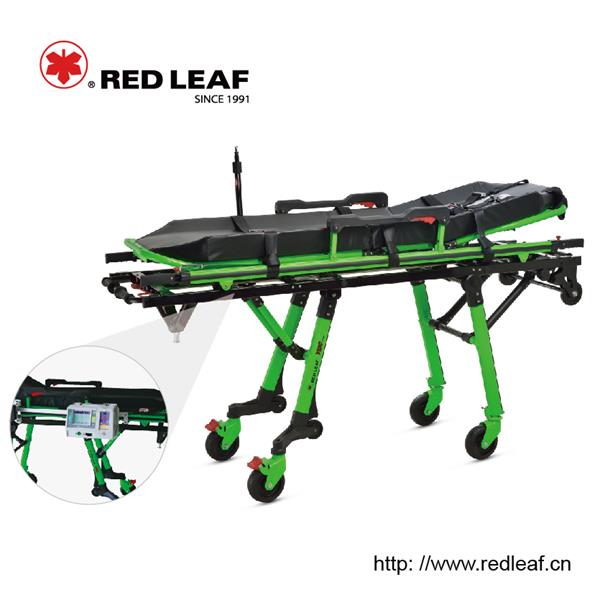

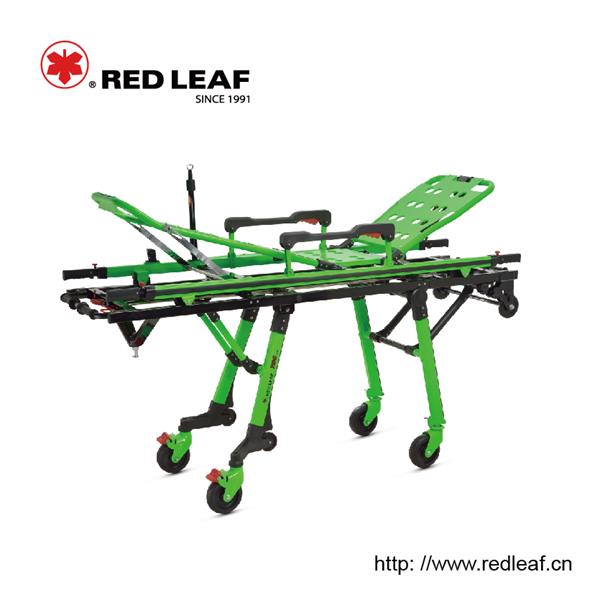

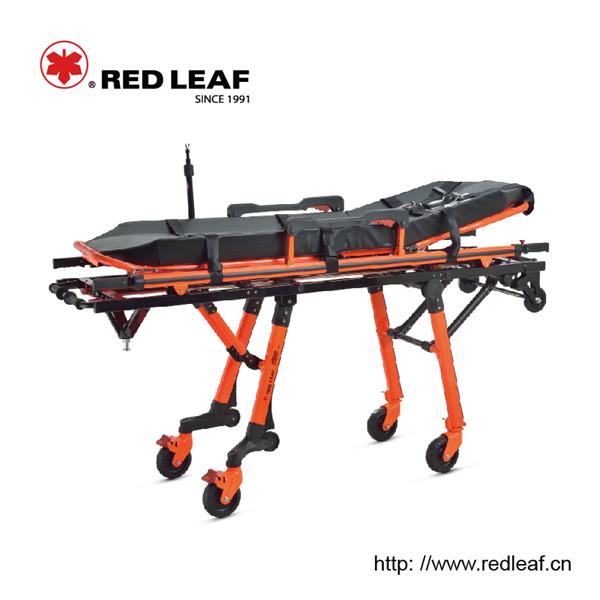

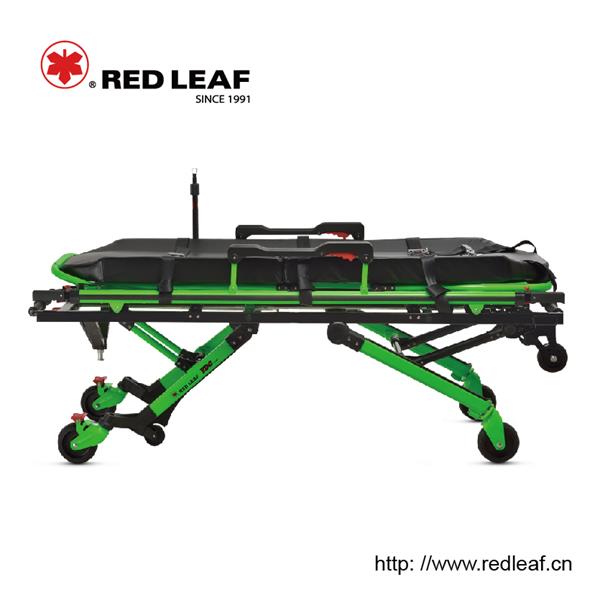

YDC-3K Adjustable Aluminum Alloy PVC Mat Ambulance Stretcher

Features
1. This aluminum alloy ambulance stretcher uses high-strength aluminum alloy as the main material, and it’s treated with surface hardening.
2. The height of front part, back part and the whole stretcher can be adjusted at four levels. The height can be controlled by the handles on both sides, and
3. Only one medical staff is needed to push the stretcher into the ambulance.
4. Our hospital ambulance stretcher is equipped with adjustable polymer plastic guardrails and three-point style safety belts for the convenience and safety of patient transport.
5. The height of this aluminum alloy ambulance stretcher can be adjusted with more than 4 levels to perform CPR. More than 12 levels of inclination angles can be set.
6. The hospital ambulance stretcher is equipped with adjustable three-stage I.V. stand, and it enjoys maximum adjustable length of 80cm.

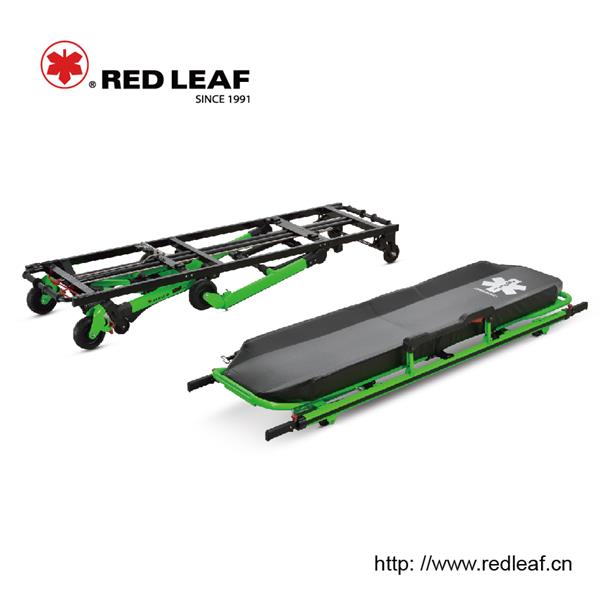

7. This aluminum alloy ambulance stretcher adopts separable structure, and the upper part can be used as a simple stretcher.
8. The folding mechanism of this hospital ambulance stretcher is controlled by handles, and it must be fixed with the fixing device after the stretcher is loaded onto the ambulance.
9. Telescopic handles are designed to facilitate handling.
10. Universal wheels of the front end are designed with elastic latches. The wheels can go straight or move at any direction as needed.
11. Loading height: 62cm; wheel size: Φ150mm.

Specifications

Model	Product Size (L × W × H) (cm)		Max Angle of Back	Max Angle of Knee Part	Net Weight (kg)	Load Bearing (kg)	Packing
	High Position	Low Position					Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
YDC-3K	197 × 58 × 93	197 × 56 × 36	75º	15º	50	250	1	208 × 66 × 62	-
