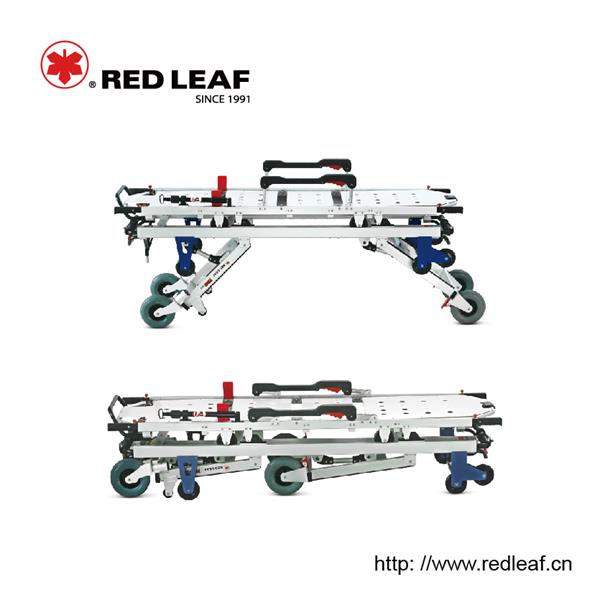

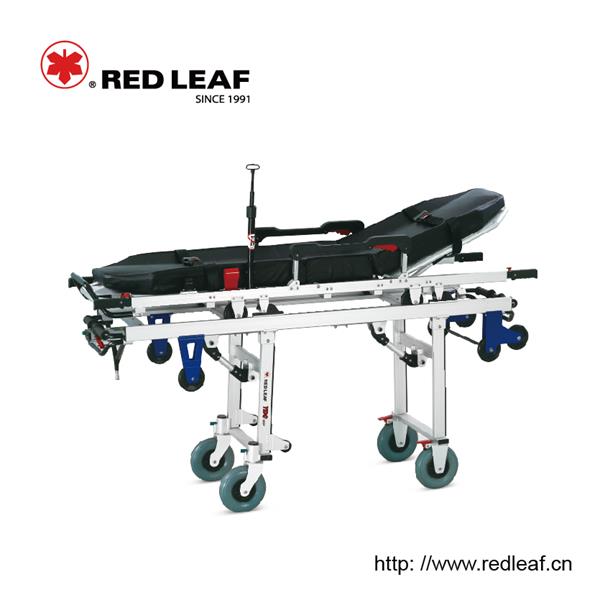

YDC-3C02 Adjustable & Separable Integrated Aluminum Alloy Ambulance Stretcher

Features
1. This adjustable aluminum alloy ambulance stretcher uses high-strength aluminum alloy as the main material, and it’s treated with surface hardening.
2. The height of front part, back part and the whole stretcher can be adjusted at four levels. The height can be controlled by the handles on both sides, and only one medical staff is needed to push the stretcher into the ambulance.
3. The separable aluminum alloy ambulance stretcher is equipped with aluminum alloy adjustable guardrails and two safety belts for the convenience and safety of patient transport.
4. Our adjustable aluminum alloy ambulance stretcher is designed with adjustable three-stage I.V. stand, which enjoys maximum adjustable length of 80cm.
5. Stretcher fixing device, which can lead the stretcher to load into the ambulance, adopts integrated structure. Such Structure can make sure the stretcher is loaded at the right position of the ambulance.

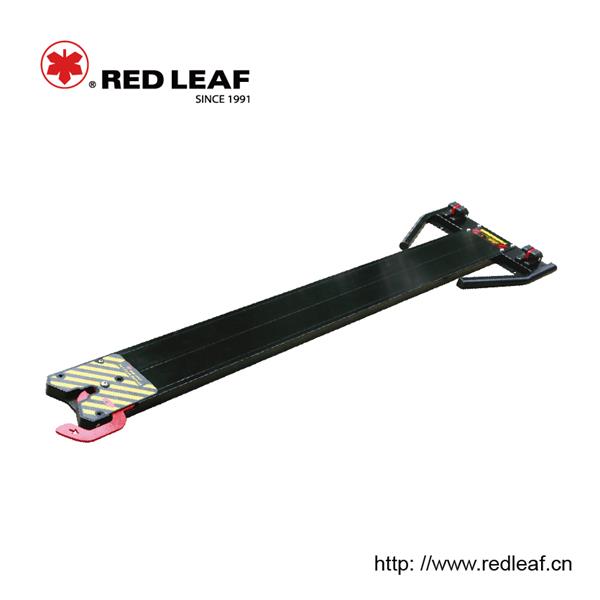

6. The upper part of this separable aluminum alloy ambulance stretcher can be separated and used as a simple stretcher.
7. F07 fixing device of this adjustable aluminum alloy ambulance stretcher has applied for patent.
8. Loading height: 56cm; wheel size: Ø200mm.

Specifications

Model	Product Size (L × W × H) (cm)		Max Angle of Back	Max Angle of Knee Part	Net Weight (kg)	Load Bearing (kg)	Packing
	High Position	Low Position					Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
YDC-3C02	195 × 58 × 94	195 × 58 × 40	70º	15º	49	250	1	195 × 56 × 49	54
