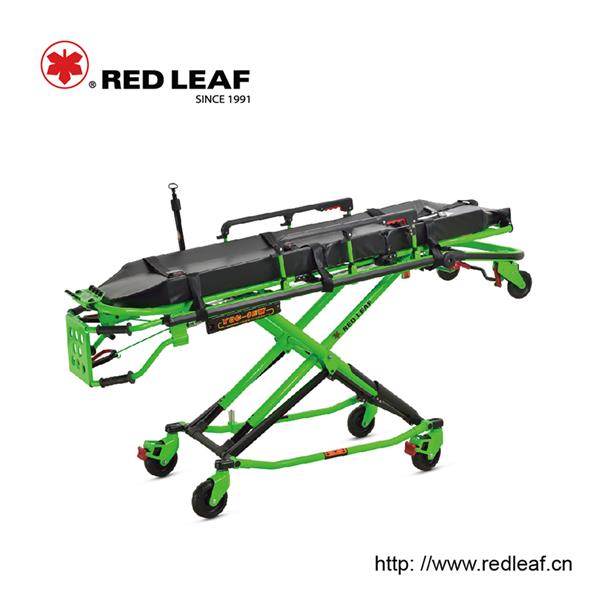

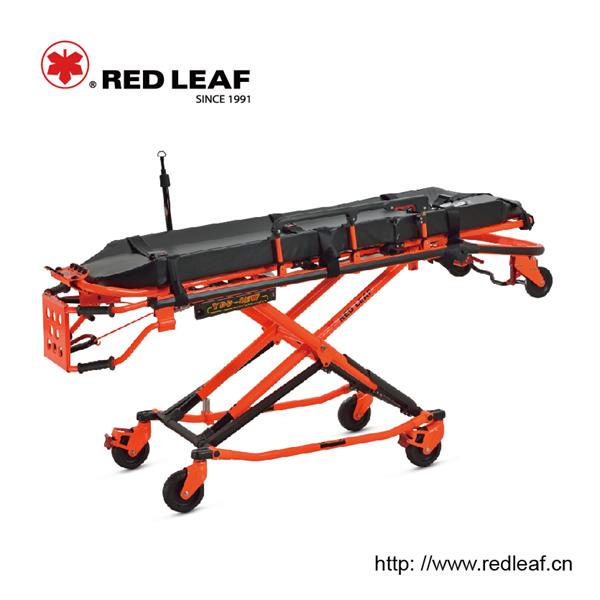

YDC-3E Adjustable Aluminum Alloy PVC Mat Ambulance Stretcher for Narrow Spaces like Elevators

Features
1. This adjustable aluminum alloy ambulance stretcher uses high-strength aluminum alloy as the main material, and it’s treated with surface hardening.
2. The PVC mat ambulance stretcher applies to narrow spaces such as elevators. Length adjustment is realized by bayonet type synchronous folding mechanism.
3. The guardrail of this adjustable aluminum alloy ambulance stretcher uses polymer plastics. Adjustable structure facilitates loading and unloading of patients and the wounded, fixed three-point safety strap ensures safe handling and transportation.

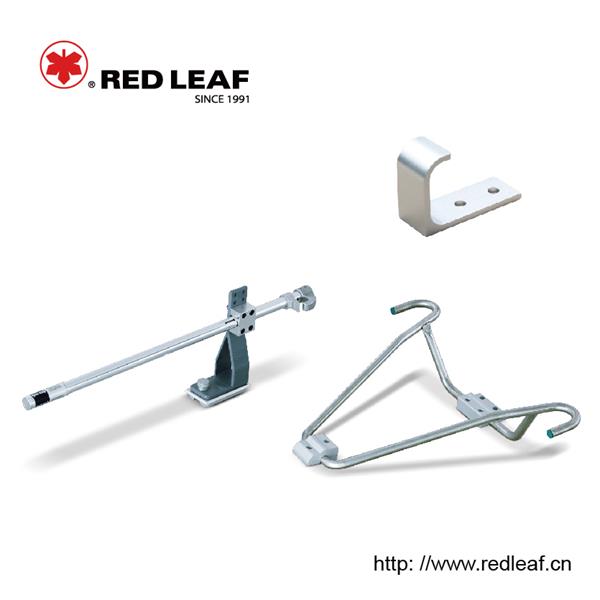

4. The PVC mat ambulance stretcher is equipped with adjustable three-stage I.V. stand, and it enjoys maximum adjustable length of 80cm.
5. Mattress of the stretcher adopts PVC material with thickness of 10 cm.
6. The height can be adjusted by 8 levels. Largest loading height: 69cm.
7. More than two medical staff are needed to lift up the stretcher onto the ambulance.
8. Wheel size: Ø150mm.

Specifications

Model	Product Size (L × W × H) (cm)		Max Angle of Back	Max Angle of Knee Part	Net Weight (kg)	Load Bearing (kg)	Packing
	High Position	Low Position					Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
YDC-3E	205 × 58 × 95	205 × 58 × 30	75º	15º	42	320	1	211 × 66 × 61	88
