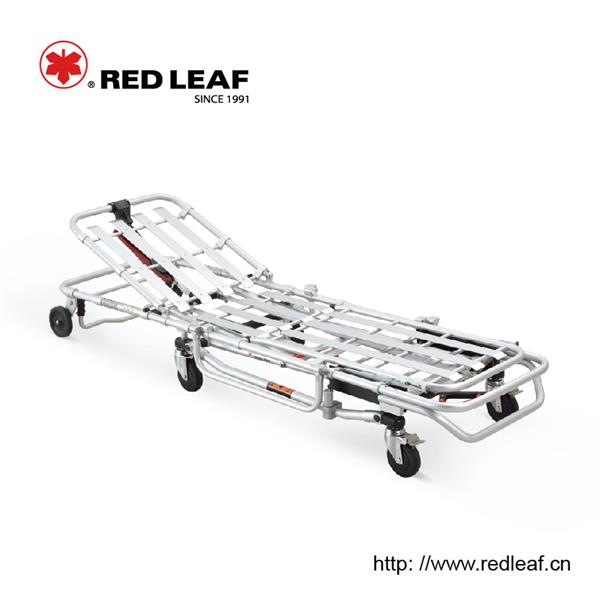

YDC-3E02 Adjustable Aluminum Alloy PVC Mat Ambulance Stretcher for Narrow Spaces like Elevators

Features
1. This adjustable stretcher uses high-strength aluminum alloy as the main material, and it’s treated with surface hardening.
2. The aluminum alloy stretcher applies to narrow spaces such as elevators. Length adjustment is realized by bayonet type synchronous folding mechanism.
3. The adjustable stretcher is equipped with aluminum alloy adjustable guardrails and two safety belts for the convenience and safety of patient transport.

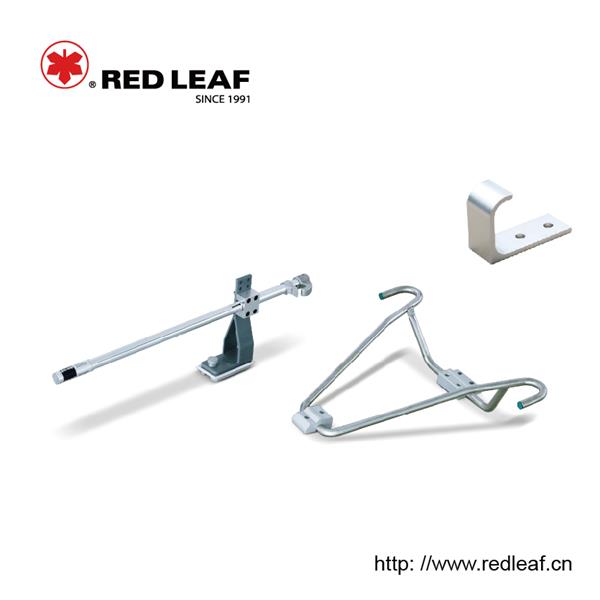

4. Our aluminum alloy stretcher is designed with adjustable two-stage I.V. stand, which enjoys maximum adjustable length of 75cm.
5. Mattress of the adjustable stretcher adopts PVC material with thickness of 6cm, and it’s seamlessly welded with high-density polyethylene coated nylon (65mm).

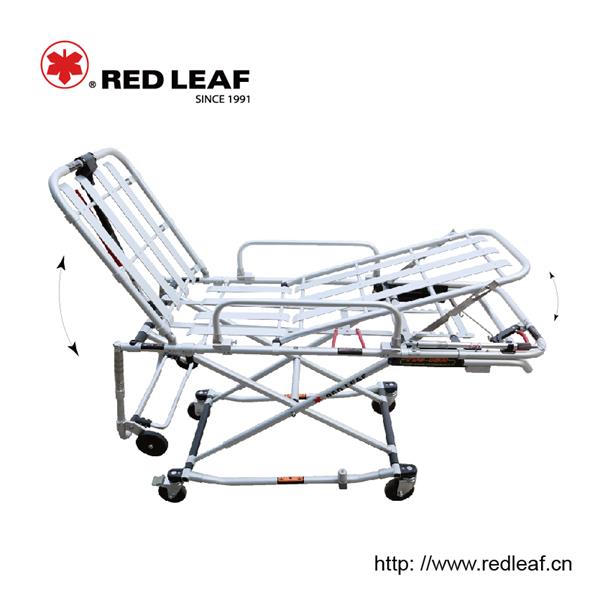

6. The height of our aluminum alloy stretcher can be adjusted by 8 levels. Largest loading height: 77cm.
7. More than two medical staff are needed to lift up the stretcher onto the ambulance.
8. Wheel size: Ø125mm.

Specifications

Model	Product Size (L × W × H) (cm)		Max Angle of Back	Max Angle of Knee Part	Net Weight (kg)	Load Bearing (kg)	Packing
	High Position	Low Position					Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
YDC-3E02	200 × 58 × 88	205 × 58 × 26	75º	15º	33	230	1	202 × 58 × 46	38
