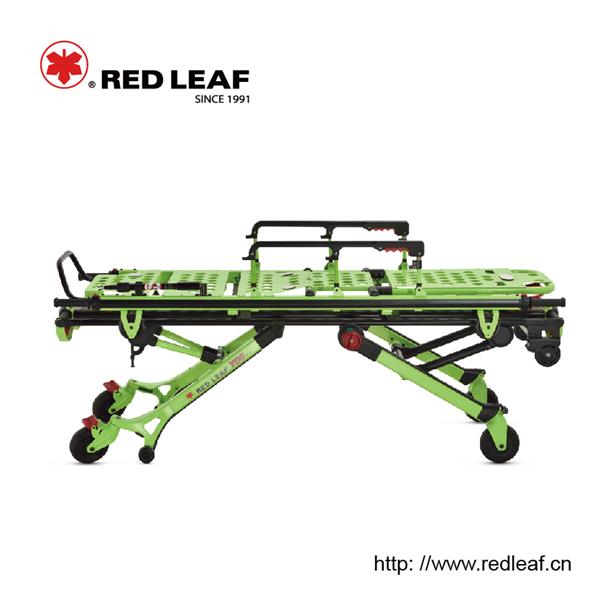

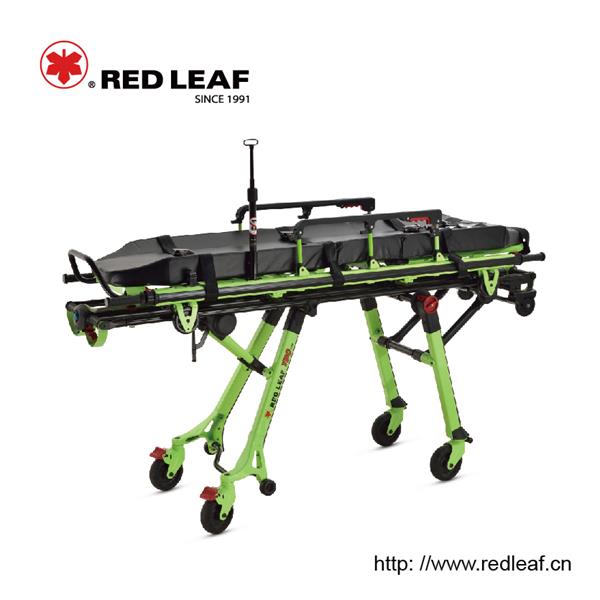

YDC-3F Adjustable & Separable Aluminum Alloy PVC Mat Ambulance Stretcher

Features
1. This adjustable ambulance stretcher uses high-strength aluminum alloy as the main material, and it’s treated with surface hardening.
2. The height of this separable aluminum alloy ambulance stretcher can be adjusted with more than 4 levels to perform CPR. More than 12 levels of inclination angles can be set.
3. The guardrail of this adjustable ambulance stretcher uses polymer plastics. Adjustable structure facilitates loading and unloading of patients and the wounded, fixed three-point safety strap ensures safe handling and transportation.
4. The separable aluminum alloy ambulance stretcher is equipped with adjustable three-stage I.V. stand, and it enjoys maximum adjustable length of 80cm.
5. Only one medical staff is needed to push the stretcher into the ambulance.

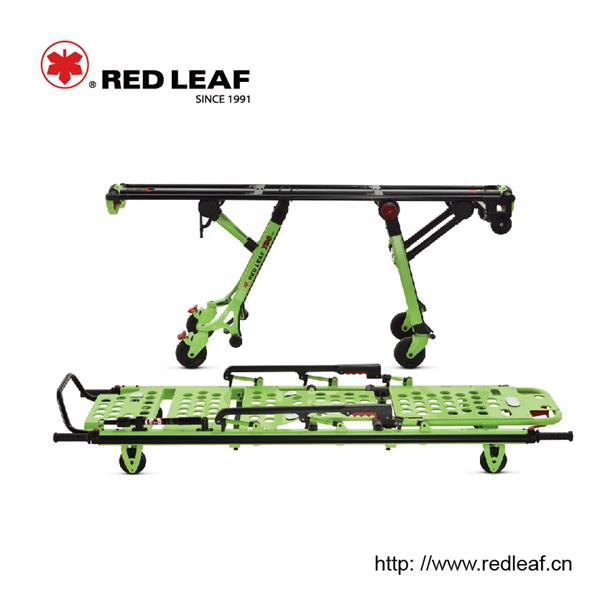

6. This adjustable ambulance stretcher adopts separable structure, and the upper part can be used as a simple stretcher.

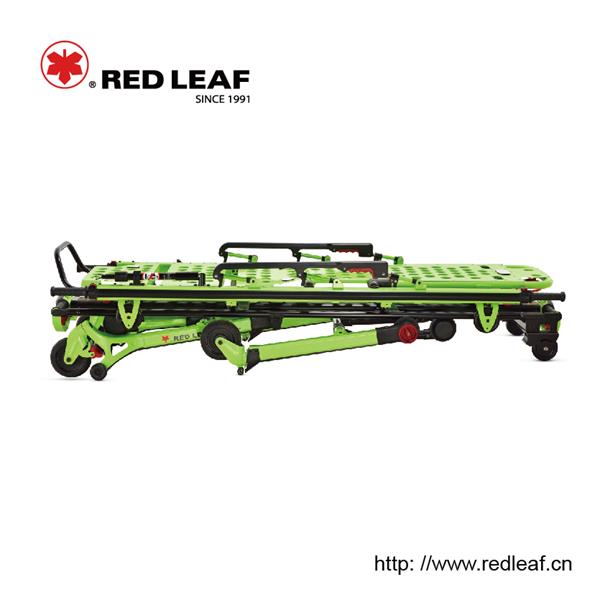

7. The folding mechanism is controlled by handles, and it must be fixed with the fixing device after the stretcher is loaded onto the ambulance.
8. Mattress of the separable aluminum alloy ambulance stretcher adopts PVC with thickness of 10cm.
9. Telescopic handles are designed to facilitate handling.
10. The universal wheels at the front end are designed with elastic latches. The wheels can go straight or move at any direction as needed.
11. Loading height: 62cm; wheel size: Φ150mm.

Specifications

Model	Product Size (L × W × H) (cm)		Max Angle of Back	Max Angle of Knee Part	Net Weight (kg)	Load Bearing (kg)	Packing
	High Position	Low Position					Quantity	Size (L × W × H) (cm)	Gross Weight (kg)
YDC-3F	197 × 56 × 93	197 × 56 × 37	75º	15º	53	230	1	208 × 66 × 62	93
